LIQUID RING VACUUM PUMPS – CONICAL PORT DESIGNS
LIQUID RING VACUUM PUMPS : FLAT PORT DESIGNS |
| |
| |
| |

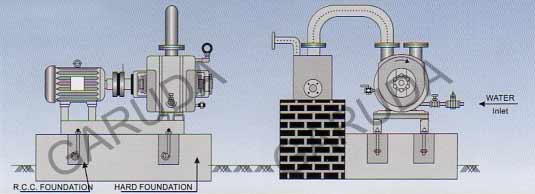

| FLAT PORT DESIGNS - GWV Series - LAYOUT DIAGRAM |
|
| |
|
| |
| |
| PERFORMANCE TABLE OF "GARUDA" GWV SERIES |
| MODEL |
MOTORS HP |
SPEED(RPM) |
SUCTION CAPACITY m3/hr |
WATER LPM. |
| GWV 10 |
1 |
2880 |
10 |
1.2 |
| GWV 20 |
2 |
2880 |
20 |
2.0 |
| GWV 40 |
3 |
2880 |
53 |
4.0 |
| GWV 70 |
5 |
2880 |
85 |
9.0 |
| GWV 120 |
7.5 |
2880 |
125 |
13.0 |
| GWV 150 |
7.5 |
1440 |
175 |
16.0 |
| GWV 200 |
10 |
1440 |
225 |
20.0 |
| GWV 300 |
15 |
1440 |
340 |
28.0 |
| GWV 400 |
20 |
1440 |
450 |
35.0 |
| GWV 500 |
25 |
980 |
525 |
45.0 |
| GWV 600 |
30 |
980 |
730 |
55.0 |
| GWV 1000 |
40 |
980 |
1100 |
85.0 |
| GWV 1500 |
75 |
725 |
1725 |
120 |
| GWV 2000 |
100 |
725 |
2200 |
150 |
|

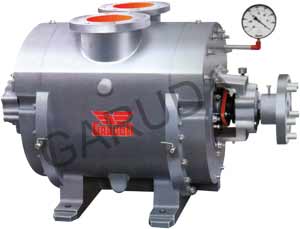

| CROSS SECTIONAL VIEW |
| |
 |
|
| |
|
| |
|
|
| MATERIAL OF CONSTRUCTION OFFERED |
Cast iron FG-260 / S.G. iron / Phosphorous Bronze / SS-316 / SS-304 / SS-316L Rubber Lined / Cast Steel / Alloy 20 in Complete as well as Partial Vacuum Pumps |
| |
| |
|
| |
