Vacuum Pumps
Garuda Pumps - ISO 9001 : 2008 Certified






LIQUID RING VACUUM PUMPS – CONICAL PORT DESIGNS
LIQUID RING VACUUM PUMPS : FLAT PORT DESIGNS


liquid ring vacuum pump exporter "GSC Series"

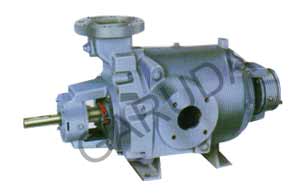

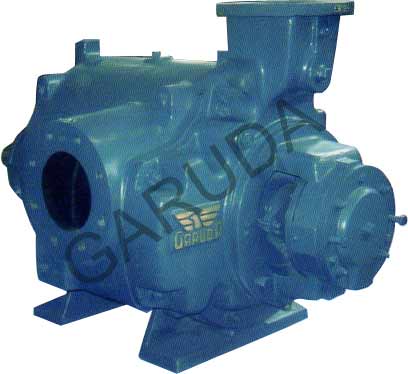

Single Cone Vacuum Pump
liquid ring vacuum pump manufacturer


GSC-Series (Singlw Cone Vacuum Pump)
  • Suction Capacity         : 220 to 5000M3 / Hr
  • Power Consumption  : 7.5kW to 132kW
  • Maximum Vacuum    : 710mm of Hg (G)
  Material Selection Chart

GX - Standard cast iron FG -260 with rotor in
S.G. iron /Ductile iron
GXS - Rotor and Control cones in 304/316 Stainless Steel, Shaft in 410 SS
GXSC - Body - Cladded With 316 SS,
Head - Cladded With 316 SS
Optional - 316,410SS, Ph.Bronze, Alloy-20





Testing Standards


Each pumps is subject to rigorous test runs as our Solid Concrete Test Bed Facilities in accordance with HEI STANDARDS for LRVP's (NASH ORIFICE METHOD)/BS1571 PT-2/ Authenticating the power. Vacuum and Air Displacement Parameters. Each pumps is Certified for its performance.


liquid ring pump
