| G - 12000 SERIES |
A New Concept with Improved Efficiencies due to Changes in the Internal Designs than the Previous Highly Successful GXL, 909 & GSC Series have given the G – 12000 Series a Cutting Edge |
 |
Special Features / Advantages : |
G – 12000 comes with Unique Suction / Intel Configuration allowing for both Top & Side Intel Arrangements so as to Accommodate Installations with Low heights. Bottom & Side Discharge Connections offers Client Flexibility in the Commissioning. |
G – 12000 Comes / Allows Efficient Operations over the Entire Vacuum Range with Needing to Change |
The Pump Internals like Cones etc. Large Inspection Ports / Window allows easy access to pump Intenals for Maintenance Checks & Routine Inspections. |
|
|
Capacity Range |
| Up to 13000 CFM |
| |
Material Selection Chart |
| Optional |
: |
316L, 410 SS, Ph.Bronze, Alloy-20 |
| GX |
: |
Standard Cast Iron FG – 260 with Rotor in S.G. Iron / Ductile Iron. |
| GXS |
: |
Rotor and Control Cones in 304 / 316 Stainless Steel Shaft in 410 SS |
| GCSC |
: |
Body – Cladded with 316 SS
Head – Cladded with 316 SS |
|
 |
|
| Testing Standards : |
Each pump is subject to rigorous test runs at our Solid Concrete Test Bed facilities in accordance with HEI Standards for LRVP’s (NASH ORIFICE METHOD ) / BS 1571 PT – 2 PNEUROPE LTD. Authenticating the Power, Vacuum and Air Displacement Parameters, each pump is certified for its performance. |
| |
 |
| |

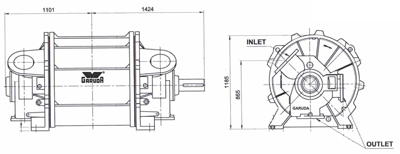

INLET |
SIDE / BOTTOM OUTLET |
| N.B. |
250 |
200 |
| O.D. |
406 |
343 |
| P.C.D. |
362 |
298 |
| HOLES |
|
|
| HOLE SIZE |
|
|
|
|
| |
